 產品類別:電流保險絲|熔斷器|保險管 - 玻璃|陶瓷|引線式保險絲 |
| |
|
產品名稱:電流保險絲6.35x31.75/6.35*31.7玻璃陶瓷管 |
產品編號:500mA,630mA,750mA,800mA,1A,1.2 |
產品簡介:
特性
高分?jǐn)嗄芰?加強分?jǐn)嗄芰? 低分?jǐn)嗄芰晒┻x擇；直接焊接或可插拔式; 國際認證; 世界范圍內可使用.
應用
電信產品; 機器; 機車; 燈飾; 儀器; 家用電器;游戲設備; 電源設備； |
|

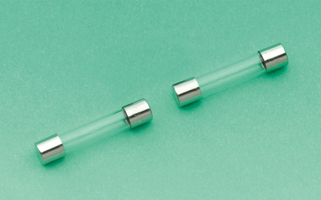

產品型號： 61TM，62TM 6.35φ×32
產品名稱： 玻璃保險絲管（速斷型）
產品詳細描述： 產品型號：
PRODUCT TYPE：
61TM，62TM 6.35φ×32
玻璃保險絲管（速斷型）GLASS TUBE FUSE（FAST-BLOW）
UL:100mA～10A 250V/125V
CUL:100mA～10A 250V/125V
分?jǐn)嚯娏鳎?BR>INTERRUPTING RATING：
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-10A)
電氣特性：
ELECTRICAL CHARACTERISTICS：
額定 RATING 熔斷時間 BLOWING TIME
100% 4 hours Min(大于4小時)
135% 1 hour Max(小于1小時)
200% 5 sec Max(小于5秒)
|

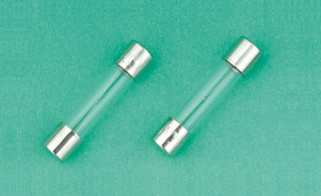

 61T，62T 6.35φ×32
產品名稱： 玻璃保險絲管（延時型)
產品詳細描述： 產品型號：
PRODUCT TYPE：
61T，62T 6.35φ×32
玻璃保險絲管（延時型）GLASS TUBE FUSE（SLOW-BLOW）
認證 APPROVALS
UL:100mA～1A 125V
CUL:100mA～1A 125V
UL:100mA～10A 250V
CUL:100mA～10A 250V
分?jǐn)嚯娏鳎?BR>INTERRUPTING RATING：
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-10A)
電氣特性：
ELECTRICAL CHARACTERISTICS：
額定 RATING 熔斷時間 BLOWING TIME
100% 4 hours Min(大于4小時)
135% 1 hour Max(小于1小時)
200% 120 sec Max(小于120秒)
1000% 10 ms Min(大于10毫秒)
|
|
產品型號： 61DT，62DT 6.35φ×32
產品名稱： 玻璃保險絲管（中等延時型
產品詳細描述： 產品型號：
PRODUCT TYPE：
61DT，62DT 6.35φ×32
玻璃保險絲管（中等延時型）GLASS TUBE FUSE（MEDIUM SKIW-BLOW）
認證 APPROVALS
UL:100mA～1A 125V
CUL:100mA～1A 125V
UL:100mA～10A 250V
CUL:100mA～10A 250V
分?jǐn)嚯娏鳎?BR>INTERRUPTING RATING：
10000A at 125V AC
35A at 250V AC(100mA-1A)
100A at 250V AC(1.25A-3.5A)
200A at 250V AC(4A-10A)
電氣特性：
ELECTRICAL CHARACTERISTICS：
額定 RATING 熔斷時間 BLOWING TIME
100% 4 hours Min(大于4小時)
135% 1 hour Max(小于1小時)
200% 120 sec Max(小于120秒)
1000% 10 ms Min(大于10毫秒) |
|
ATE(P)* 500mA-8A/250V/慢斷 玻璃 UL/CSA/PSE Y
AFE(P)* 10mA-30A/250V/快斷 玻璃 UR/UL/CSA/PSE Y
ADL(P)* 200mA-10A/250V/慢斷 玻璃 UL/CSA/PSE Y
ADA(P)* 100mA-20A/250V/慢斷 陶瓷 UR/UL/CSA/PSE Y
ABE(P)* 10mA-25A/250V/快斷 陶瓷 UR/UL/CSA/PSE Y
MDC(P)* 100mA-15A/125/250V/慢斷 玻璃 UR/UL/CSA/PSE Y
MGC(P)* 100mA-15A/125/250V/快斷 玻璃 UR/UL/CSA/PSE Y
----- ---- ---- ---- --- ----
備注: 1. (P): 帶帽引線
6.35 x 30mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA, 500mA,630mA,750mA,800mA,1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A)125V/250V, Fast Acting, Cartridge Glass Tube Fuse with Pigtail, PSE Approved
6.35 x 30mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,
300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA,1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A)125V/250V, Time Lag, Cartridge Glass Tube Fuse, PSE Approved
6.35 x 31.75mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A)125V/250V,Fast Acting, Cartridge Glass Tube Fuse, UL/CSA/PSE Approved
6.35 x 31.75mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A) 125V/250V, Cartridge Glass Tube Fuse, UL/CSA/PSE Approved
6.35 x 31.75mm, F (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A,20A,25A,30A)125V/250V, Fast Acting, Cartridge Ceramic Tube Fuse with pigtail, UL/CSA/PSE Approved
6.35 x 31.75mm, T (32mA,50mA,100mA,125mA,160mA,200mA,250mA,300mA,350mA,375mA,400mA,500mA,630mA,750mA,800mA, 1A,1.25A,1.6A,2A,2.5A,3A,3.5A,4A,5A,6A,7A,8A,10A,12A,15A,20A,25A,30A)125V/250V, Time Lag, Cartridge Ceramic Tube Fuse with pigtail, UL/CSA/PSE Approved
| |
|
|
|
|
|
|
