Product type:Since the recovery fuse | recoverable fuse - Patch type self recovery fuse SMDPPTC

Name:SMD1812 placement self recover

Item:SMD1812

Description:

ELECTRICAL CHARACTERISTICS 電氣參數
SWESMD1812 Series 1812系列

Part Number						Maximum Time To Trip		Resistance			Agency Approval
Part Number	I hold (A)	Itrip (A)	Vmax (Vdc)	I max (A)	Pd max. (W)	Current (A)	Time (Sec.)	R min (Ω)	R typ (Ω)	R 1max (Ω)	UL/CSA	TUV
SWESMD1812 P010TF	0.10	0.30	30	100	0.8	0.50	1.50	1.600	7.000	15.00	P	P
SWESMD1812 P014TF	0.14	0.34	60	10	0.8	1.50	0.15	1.500	4.000	6.000	P	P
SWESMD1812 P020TF	0.20	0.40	30	100	0.8	8.00	0.02	0.800	2.900	5.000	P	P
SWESMD1812 P050TF	0.50	1.00	15	100	0.8	8.00	0.15	0.150	0.600	1.000	P	P
SWESMD1812 P075TF	0.75	1.50	13.2	100	0.8	8.00	0.20	0.100	0.260	0.450	P	P
SWESMD1812 P075TF/24	0.75	1.50	24	100	0.8	8.00	0.20	0.110	0.200	0.290	P	P
SWESMD1812 P075TF/33	0.75	1.50	33	20	0.8	8.00	0.20	0.110	0.260	0.400	P	P
SWESMD1812 P110TF	1.10	2.20	8	100	0.8	8.00	0.30	0.040	0.120	0.210	P	P
SWESMD1812 P110TF/16	1.10	1.95	16	100	0.8	8.00	0.50	0.060	0.120	0.180	P	P
SWESMD1812 P110TF/24	1.10	1.95	24	20	0.8	8.00	0.50	0.060	0.120	0.200	P	P
SWESMD1812 P110TF/33	1.10	1.95	33	20	0.8	8.00	0.50	0.060	0.120	0.200	P	P
SWESMD1812 P125TF/16	1.25	2.50	16	100	0.8	8.00	0.40	0.050	0.090	0.140	P	P
SWESMD1812 P125TF/6,4L	1.25	2.50	6	100	0.8	8.00	0.40	0.050	0.090	0.140	P	P
SWESMD1812 P150TF/8	1.50	3.00	8	100	0.8	8.00	0.30	0.040	0.070	0.110	P	P
SWESMD1812 P150TF/12	1.50	3.00	12	100	0.8	8.00	0.50	0.040	0.070	0.110	P	P
SWESMD1812 P150TF/24	1.50	3.00	24	20	0.8	8.00	1.50	0.040	0.070	0.120	P	P
SWESMD1812 P160TF/8(4L)	1.60	2.80	8	100	0.8	8.00	1.00	0.030	0.066	0.100	P	P
SWESMD1812 P200TF	2.00	3.50	8	100	0.8	8.00	2.00	0.020	0.040	0.060	P	P
SWESMD1812 P260TF	2.60	5.00	6	100	0.8	8.00	2.50	0.015	0.030	0.047	P	P
SWESMD1812 P300TF	3.00	5.00	6	100	0.8	8.00	4.00	0.012	-	0.040	P	P

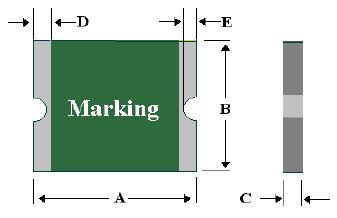

Figure尺寸

Solder PAD Layouts
(Dimension in mm)

PHYSICAL DIMENSIONS (mm)尺寸圖
SWESMD1812 Series 1812系列

Part Number	A		B		C		D	E
Part Number	Min	Max	Min	Max	Min	Max	Min	Min	Max
SWESMD1812 P010TF	4.37	4.73	3.07	3.41	0.75	1.25	0.30	0.25	0.65
SWESMD1812 P014TF	4.37	4.73	3.07	3.41	0.75	1.95	0.30	0.25	0.65
SWESMD1812 P020TF	4.37	4.73	3.07	3.41	0.55	1.00	0.30	0.25	0.65
SWESMD1812 P050TF	4.37	4.73	3.07	3.41	0.50	0.75	0.30	0.25	0.50
SWESMD1812 P075TF	4.37	4.73	3.07	3.41	0.50	0.75	0.30	0.25	0.50
SWESMD1812 P075TF/24	4.37	4.73	3.07	3.41	0.75	1.55	0.30	0.25	0.65
SWESMD1812 P075TF/33	4.37	4.73	3.07	3.41	0.75	1.55	0.30	0.25	0.65
SWESMD1812 P110TF	4.37	4.73	3.07	3.41	0.30	0.71	0.30	0.25	0.65
SWESMD1812 P110TF/16	4.37	4.73	3.07	3.41	0.75	1.25	0.30	0.25	0.65
SWESMD1812 P110TF/24	4.37	4.73	3.07	3.41	0.50	1.07	0.30	0.25	0.65
SWESMD1812 P110TF/33	4.37	4.73	3.07	3.41	1.20	2.00	0.30	0.25	0.65
SWESMD1812 P125TF/16	4.37	4.73	3.07	3.41	0.75	1.25	0.30	0.25	0.50
SWESMD1812 P125TF/6,4L	4.37	4.73	3.07	3.41	0.45	0.75	0.30	0.25	0.65
SWESMD1812 P150TF/8	4.37	4.73	3.07	3.41	0.40	0.71	0.30	0.25	0.65
SWESMD1812 P150TF/12	4.37	4.73	3.07	3.41	0.75	1.25	0.30	0.25	0.65
SWESMD1812 P150TF/24	4.37	4.73	3.07	3.41	0.80	1.80	0.30	0.25	0.65
SWESMD1812 P160TF/8(4L)	4.37	4.73	3.07	3.41	0.40	0.75	0.30	0.25	0.65
SWESMD1812 P200TF	4.37	4.73	3.07	3.41	0.81	1.20	0.30	0.25	0.50
SWESMD1812 P260TF	4.37	4.73	3.07	3.41	0.80	1.34	0.30	0.25	0.50
SWESMD1812 P300TF	4.37	4.73	3.07	3.41	0.80	1.50	0.30	0.25	0.65
